Draftex Drafting Equipment Package No.11B (DEP11A1B) consists of our DS11 Drafting Stand which includes height and angle adjustment, a drawing board designed to comfortably suit A1 size drawings with extra working room and is equipped with a Draftex Parallel Motion Rule.
Board Size
Stand
- DS11 Drafting Stand.
- Telescopic Height Adjustment.
- Angle Adjustment Secured by Locking Knobs.
- Frame with Incorporated Instrument Tray.
- Black Powder Coat finish with Black Tray.
- Horizontal Height Range is from 900 - 1100 mm.
- See Components Tab for More Information on DS11 Drafting Stand.
PMU
- Draftex Parallel Rule.
- Single Locking Mechanism.
- Bevelled Inking Edge.
- See Components Tab for More Information on our Draftex Parallel Motion Units.
For Adjustable Set Squares Click here

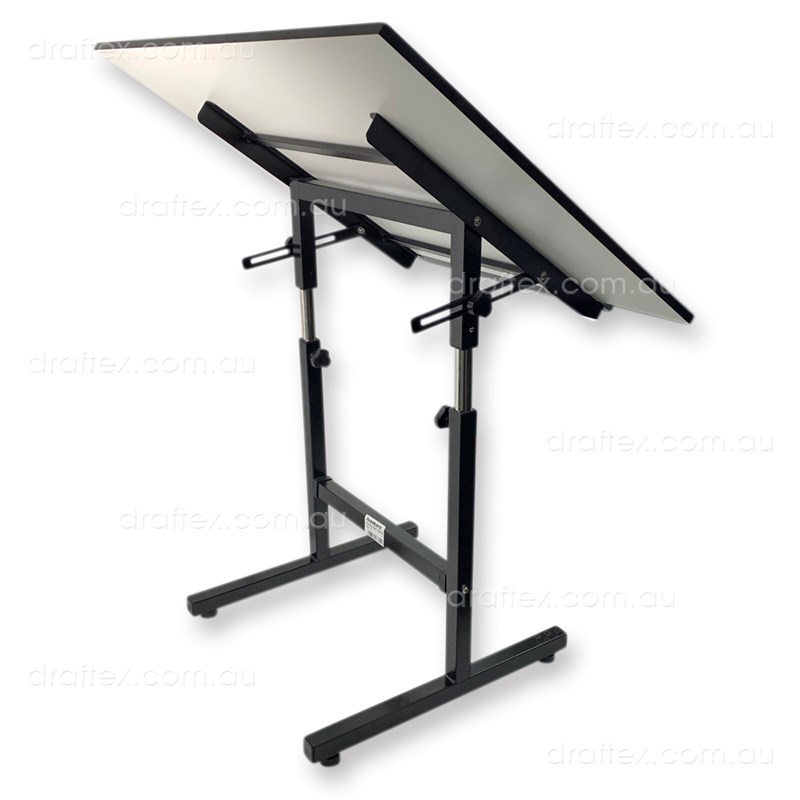

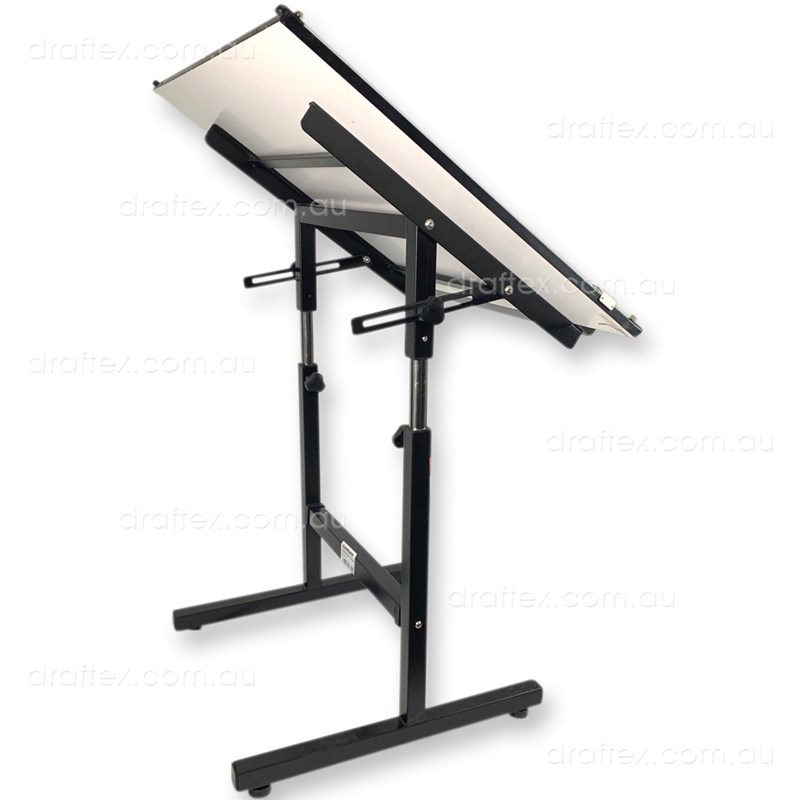

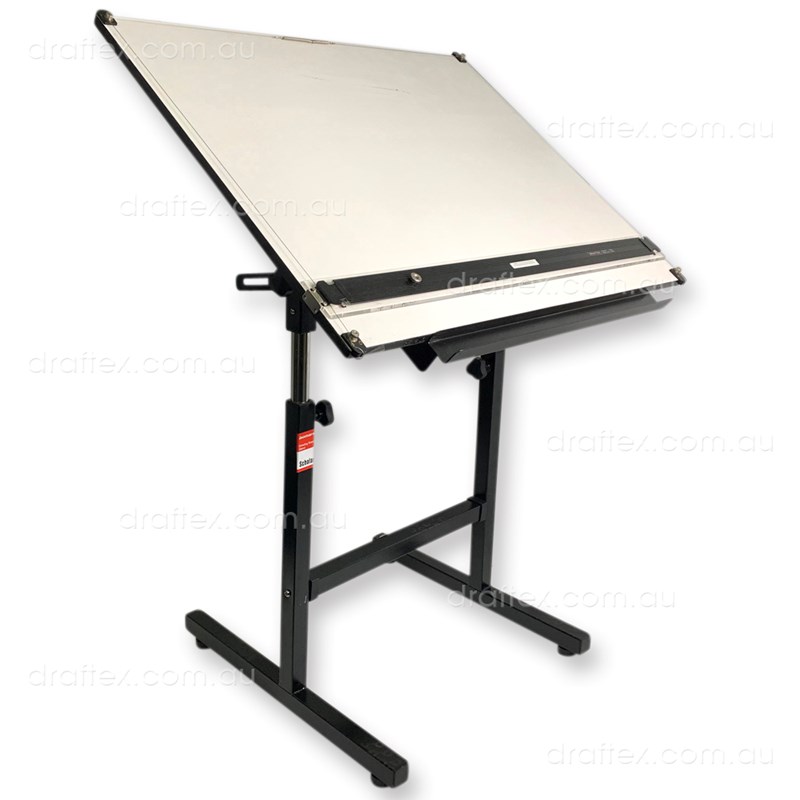

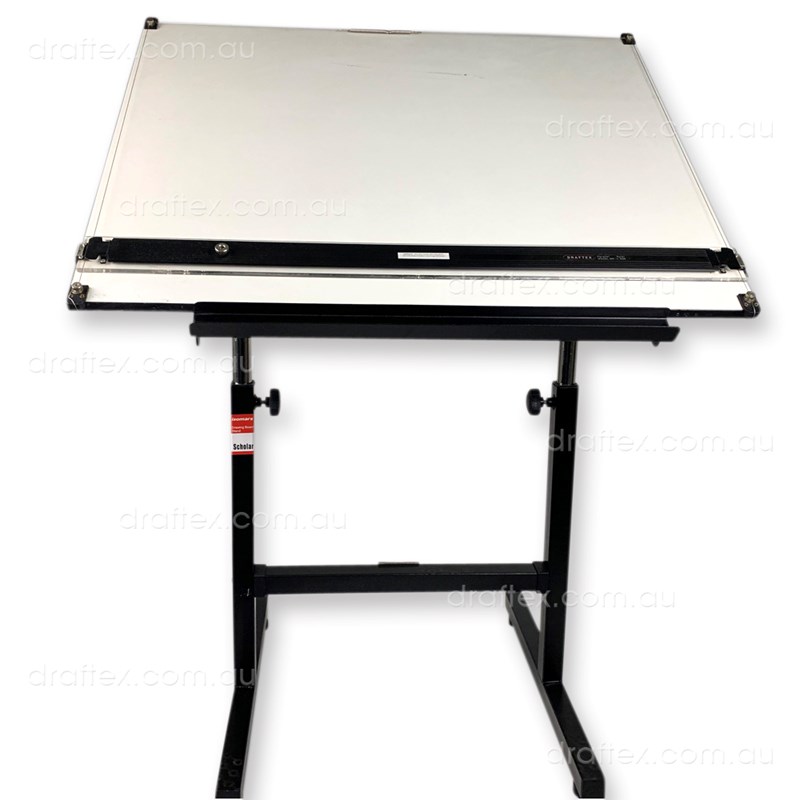

The Draftex DEP11A1B is comprised of a DS11 Drafting Stand, a Parallel Motion Rule and 900x 720mm Drawing Board.
The DS11 Stand is adjustable for height and angle.
The Drawing Board has a smooth melamine surface and heavy duty 2mm plastic edging.
A tray runs across the bottom edge of the board to hold pens, pencils and other drawing instruments.
The board is fitted with our Draftex Parallel Motion Rule.
This device is guided by wires and runs in a perfectly parallel line from top to bottom of the board.
This rule can be locked in to place so that you can rest other drawing aids such as set squares, templates or adjustable set squares on the top edge.
The Parallel rule effectively frees one hand when compared to working with a Tee Square as it does not need to be held in place.
Working with ink is made easier because the rule is elevated from the work surface by sprung rollers reducing the potential for capillary action.
A1 paper fits above the top edge of the parallel rule. This is the most compact unit that will cater to drawing in A1 size.
