Draftex Plan Clamps Starting from $29.00

  • Dpca0 Dpcb1 Dpca1 Draftex Plan Filing Clamps Available In 3 Sizes A0 B1 A1
  • Dpca1 Draftex A1 Plan Clamp
  • Dpcb1 Draftex B1 Plan Clamp
  • Dpca0 Draftex A0 Plan Clamp
DPCA1
Quantity

Draftex Plan Filing Clamps have a spring loaded three piece jaw construction making them easy to use when loading or unloading plans. They are designed to hold between 1 to 100 sheets of 80gsm paper and load onto Draftex Plan Filing Trolleys or Wall Rack.

  • Available in Sizes to Suit A0, B1 and A1 Drawings.
  • Three Piece Design ensures Firm Clamping from 1 to 100 sheets.
  • Combined Carry Handle/Hanging Hook in Cast Alloy.
  • Smooth Spring Assisted Opening and Positive Easy Clamping.
  • Handle is Balanced at Pivot Point for Ease of Carrying and Placement in Trolley.
  • Clear Indexing Piece Clips on to Clamp for Filing Info.
  • Over 50,000 units in use.
  • 10 Year Warranty.
  • Compatible with Draftex Trolleys and Wall Racks Only.
  • All Three Sizes Available Individually or Box of 10.
Box of 10 Clamps
Clamp Length Overall Clamp Length Price Ex GST Price Inc GST Savings Inc GST
A1 - 640mm 695mm $250.80 $275.90 $16.70
B1 - 745mm 800mm $265.05 $291.60 $15.40
A0 - 905mm 960mm $280.25 $308.30 $14.10

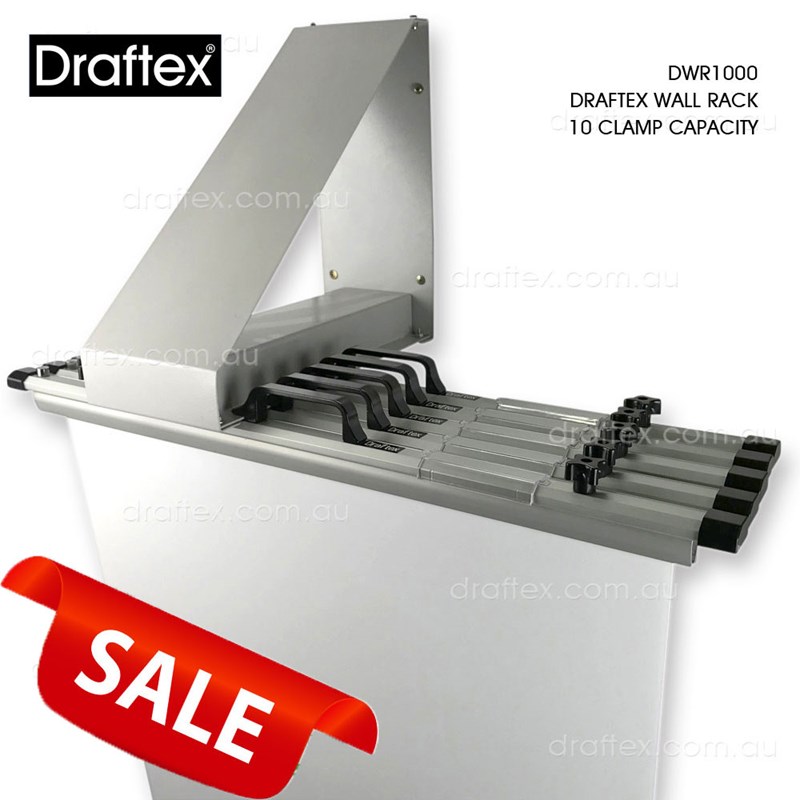

Draftex Wall Rack Can Be Found here

Draftex Plan Trolleys Can Be Found here

Plan Filing Packages Can Be Found here

Draftex Plan Filing Clamps are really easy to use. They open readily for loading of drawings thanks to the spring loaded three piece jaw construction. They also tighten up smoothly and securely holding between 1 and 100 sheets of 80gsm paper. The handle of the Draftex Plan Clamp is situated at a balance point that makes it easy to unload, carry and then reload in to the Draftex Plan Trolley or Wall Rack. A large clear index tab allows the user to identify the contents and maintain filing integrity. There are over 50,000 Draftex Plan Clamps in use and we have never repaired or serviced one, hence our confidence in providing a 10 year warranty.

Product Range

Plan Clamps - DPCA1, DPCB1, DPCA0

Plan Trolleys - DPTA1, DPTA110, DPTA0, DPTA010

Wall Racks - DWR1000

Background

The Draftex Range of Plan Filing Equipment consists of Trolleys, Wall Brackets and Clamps. The integral part of the system is the clamp and it’s design. The requirement of a good plan clamp is to hold from 1 to 100 sheets of paper securely. Then the loaded clamp must be able to be stored in a wall rack or trolley and easily removed and returned to the same location to maintain a filing sequence. Plans must be easily loaded in to the clamp and removed or replaced efficiently. Clamps should ideally match the paper sizes in use.

The Draftex Plan Clamp incorporates features which meet all of these requirements and more. The design uses three sections of aluminium extrusion. Two spring loaded side sections pivot from the central spine of the clamp and are spaced apart to allow ease of loading and to maintain constant clamping pressure whether fully or partly loaded. The carry handle is alloy and incorporates the front loading notch. Draftex Plan Clamps are the only ones to consider the important ergonomics of this handle placement. They are located for ease of placement and removal from the trolley and more importantly for balance in the users’ hand. A fully loaded A0 Clamp can hold over 8kg of paper. If a plan clamp handle is not located in a balanced position the leverage on a person’s hand and wrist can be extreme.

The Front Loading design facilitates ease of hanging the clamps in a trolley or wall bracket and allows the filing sequence to be maintained. Draftex Plan Clamps have a transparent indexing clip for easy identification of the contents. The all metal construction ensures a long service life with no maintenance requirement – all backed by a 10 year product warranty.

Market

Plan filing is an important requirement of Architectural, Engineering and Construction Industry practice. The trolley and clamp system is a proven way of managing sets of drawings and having them available for easy access. The versatility of the system makes it suitable for the widest range of users from the smallest enterprise up to the largest corporate.

Competitiveness

Draftex Plan Filing holds a commanding market share in the Australian market with over 50,000 plan clamps now in use. The combination of high quality, ergonomic design and low price has ensured market success. The two piece design of the Planhorse brand of clamp cannot match the ease of use, particularly the opening to load function, the wide range of clamping efficiency, the ergonomic handle placement and the all metal construction of the Draftex clamp. Other brands have kitchen drawer handles and plastic clips that they pivot from. The Draftex range cannot be beaten when all factors are considered even though it is probably the lowest price product available.

Other Terms for these Products

plan clamps, drawing clamps, plan clamp, plan holder, plan hanger, drawing hanger, plan holders, plan hangers, planhold, drawing hangers, mobile clamp, planhorse, plan rack clamps, planhorse clamps, a1 drawing hangers, Stick Files, Plan Stick, Mytec Clamp, Arnos

Code Unit Description Dimensions Weight
DPCA1EachDraftex Plan Clamp A1 - 665mm Length700L x 70W x 34H600 (g)
DPCB1EachDraftex Plan Clamp B1 - 800mm Length800L x 70W x 34H600 (g)
DPCA0EachDraftex Plan Clamp AO - 965mm Length970L x 90W x 34H700 (g)
DPCA1BX10Bx1010 x Draftex Plan Clamp A1 - 665mm720L x 210W x 120H6000 (g)
DPCB1BX10Bx1010 x Draftex Plan Clamp B1 - 800mm830L x 210W x 120H7000 (g)
DPCA0BX10Bx1010 x Draftex Plan Clamp AO - 965mm990L x 210W x 120H8000 (g)
