DEP8A1B Drafting Package $468.00

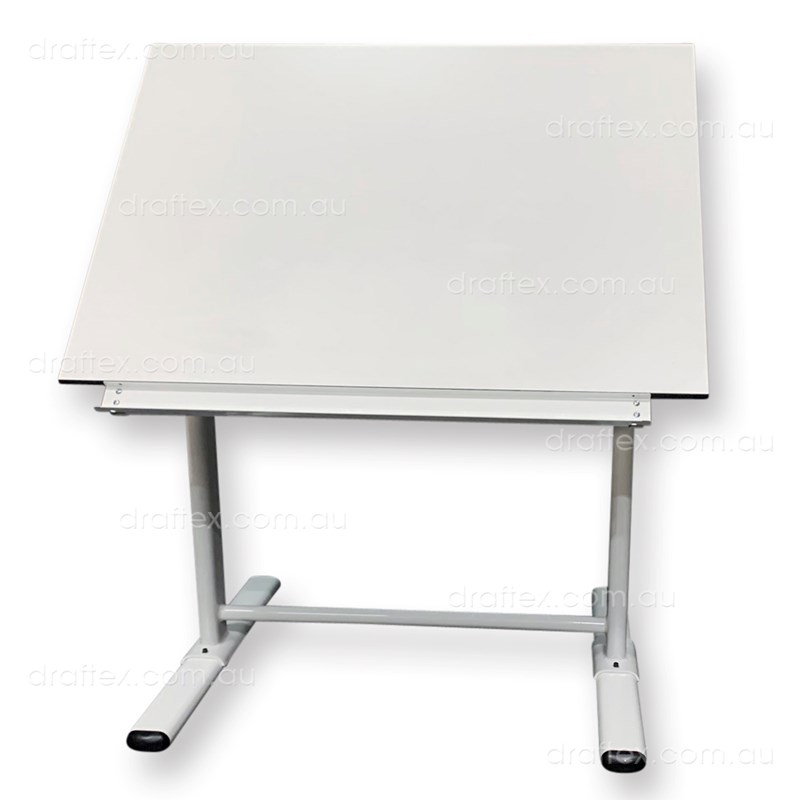

  • Dep8a1b Draftex A1 Drafting Table Package With Ds17 Stand Drawing Board 1050 X 750Mm View 1

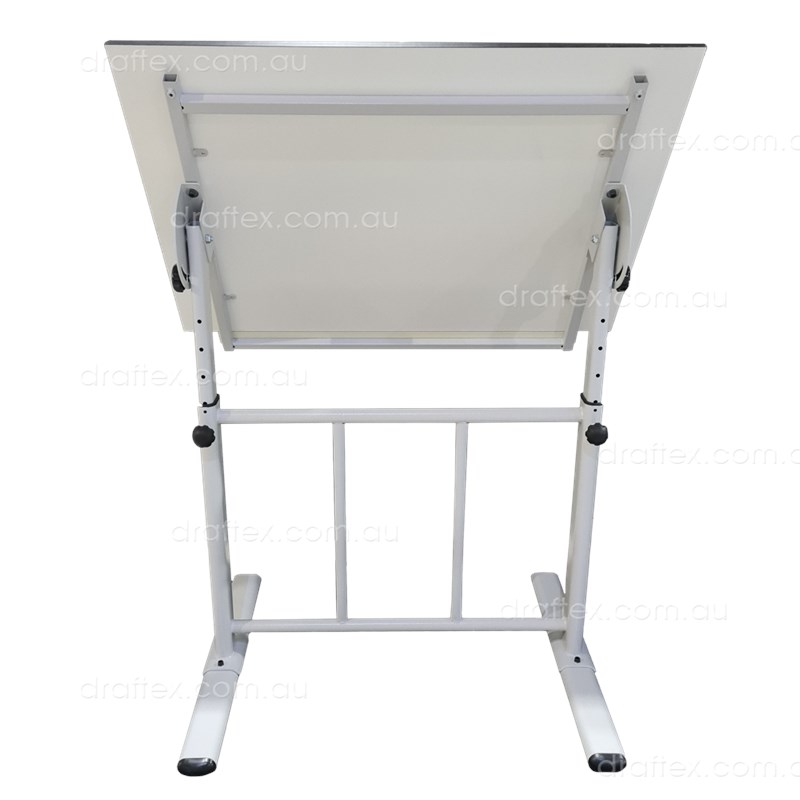

  • Dep8a1b Draftex A1 Drafting Table Package With Ds17 Stand Drawing Board 1050 X 750Mm View 2
  • Ds17 Draftex Drafting Stand Heightangle Adjust For Boards Up To 1200 X 800Mm View 1
  • Ds17 Draftex Drafting Stand Heightangle Adjust For Boards Up To 1200 X 800Mm View 2
  • Ds17 Draftex Drafting Stand Heightangle Adjust For Boards Up To 1200 X 800Mm View 3
  • Ds17 Draftex Drafting Stand Heightangle Adjust For Boards Up To 1200 X 800Mm View 4
  • Ds17 Draftex Drafting Stand Heightangle Adjust For Boards Up To 1200 X 800Mm View 5
DEP8A1B
Quantity

Draftex Drafting Equipment Package No.8B (DEP8A1B) consists of our DS17 Drafting Stand which includes height and angle adjustment with a drawing board designed to suit A1 size drawings with extra working room.

Board Size

  • A1 -1050 x 750mm

Stand

  • DS17 Drafting Stand.
  • Adjustable Height.
  • Variable Angle.
  • Adjustable from Horizontal to Vertical.
  • Pencil Tray on Front Edge.
  • Grey Powder Coat Finish with Cream Pencil Tray.
  • Dimensions 940W x 730D x 880 -1130h.
  • See Components Tab for More Information on DS17 Drafting Stand.

For Adjustable Set Squares Click here

The Draftex DEP8A1B is comprised of a DS17 Drafting Stand and 1050x 750mm Drawing Board.
The DS17 Stand is adjustable for height and angle.
A tray runs across the bottom edge of the board to hold pens, pencils and other drawing instruments.
The Drawing Board has a smooth melamine surface and tough 2mm plastic edging that suits the use of a Tee Square.

Code Unit Description Dimensions Weight
DEP8A1BPkgDB 1050 x 750mm, DS17 Stand1150L x 850W x 330H26000 (g)

Related Components

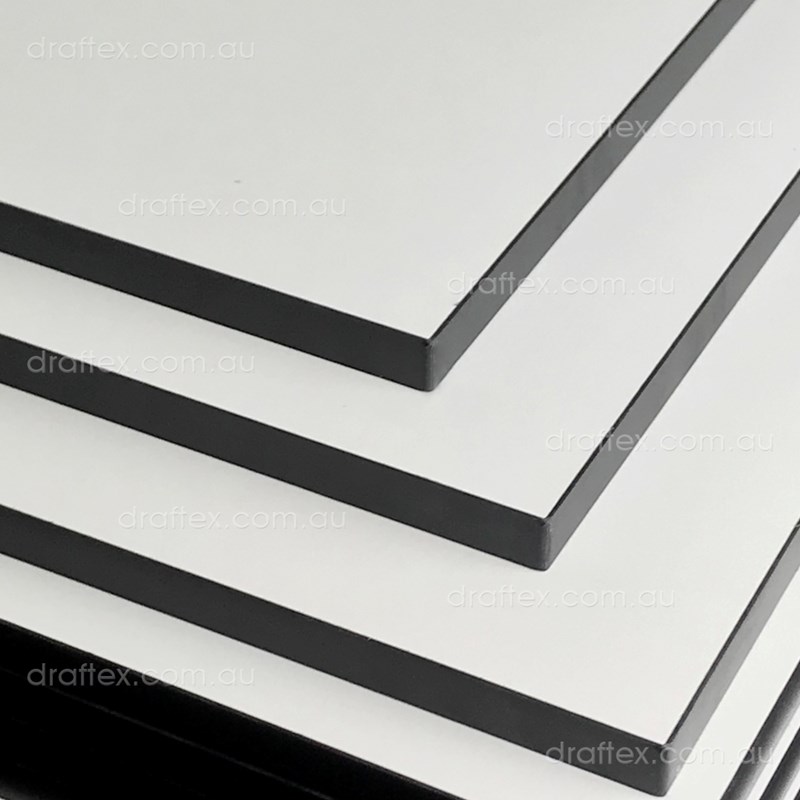

Melamine Drawing Boards

Drawing Boards in Sizes to Suit our Drafting Machines and Parallel Rules.

DS17

Drafting Stand for Drawing Boards up to 1500 x 1000mm with Positive Pin Lock Height Adjustment and Knob Angle Adjustment.
