DEP7A1 Drafting Package $301.00

  • Dep7a1 Draftex A1 Drafting Table Package With Ds11 Stand Drawing Board 900 X 720Mm View 1

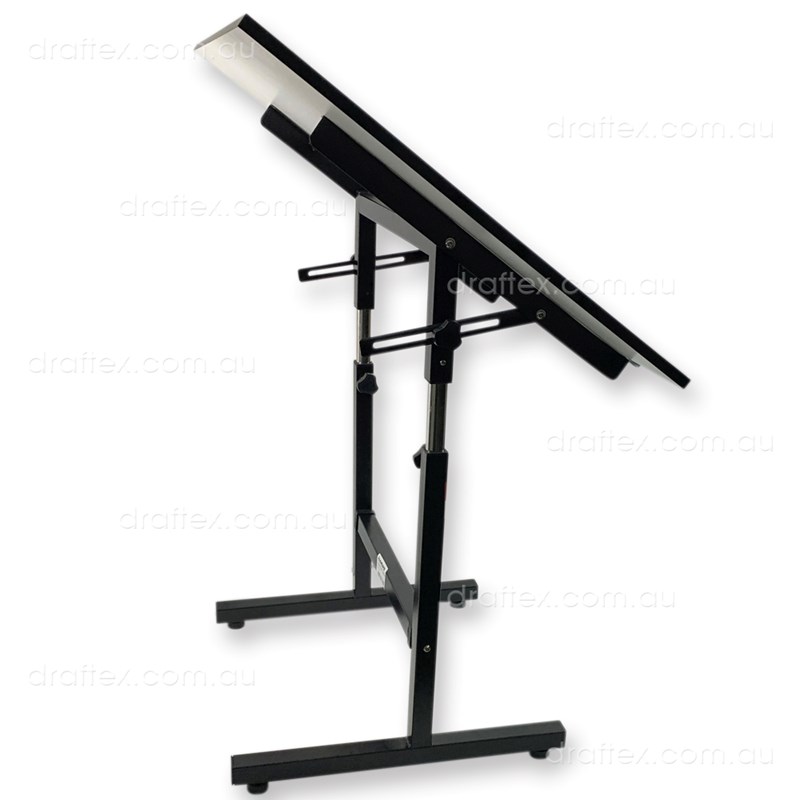

  • Dep7a1 Draftex A1 Drafting Table Package With Ds11 Stand Drawing Board 900 X 720Mm View 2
  • Dep7a1 Draftex A1 Drafting Table Package With Ds11 Stand Drawing Board 900 X 720Mm View 3
  • Ds11 Isomars Drafting Stand Dimensions Minimum Max Heights Diagram
DEP7A1
Quantity

Draftex Drafting Equipment Package No.7 (DEP7A1) consists of our DS11 Drafting Stand which includes height and angle adjustment with a drawing board designed to suit A1 size drawings with extra working room.

Board Size

  • A1 - 900 x 720mm

Stand

  • DS11 Drafting Stand.
  • Telescopic Height Adjustment.
  • Angle Adjustment Secured by Locking Knobs.
  • Frame with Incorporated Instrument Tray.
  • Black Powder Coat finish with Black Tray.
  • Horizontal Height Range is from 900 - 1100 mm.
  • See Components Tab for More Information on DS11 Drafting Stand.

For Adjustable Set Squares Click here

The Draftex DEP7A1 is comprised of a DS11 Drafting Stand and 900 x 720mm Drawing Board.
The DS11 Stand is adjustable for height and angle.
A tray runs across the bottom edge of the board to hold pens, pencils and other drawing instruments.
The Drawing Board has a smooth melamine surface and tough 2mm plastic edging that suits the use of a Tee Square.

Code Unit Description Dimensions Weight
DEP7A1PkgDB 900 x 720mm, DS11 Stand990L x 840W x 270H22000 (g)

Related Components

Melamine Drawing Boards

Drawing Boards in Sizes to Suit our Drafting Machines and Parallel Rules.

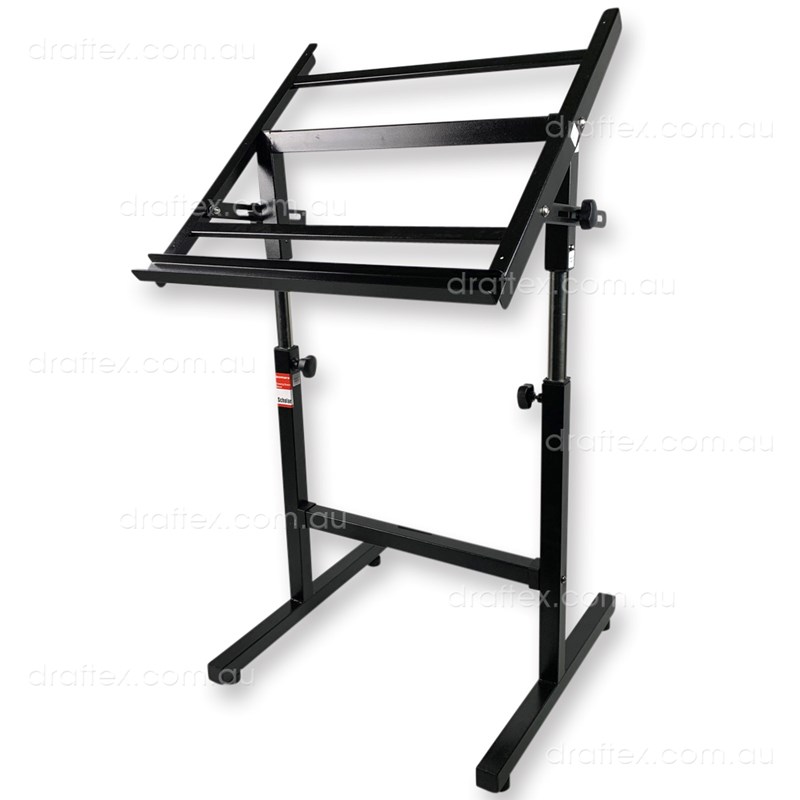

DS11

DS11 Drafting Stand for boards up to 1200 x 800. Telescopic Height Adjustment and Angle Adjustment secured by locking knobs.
